Metal Corner Bead - Corner Reinforce & Wall Protection

Metal corner bead is widely used to provide superior corner protection and mud adhesion. The high quality metal material is firm enough to protect the corner from impact. Knurled and perforated flanges for great joint compound, exposed nose for neat edge. And it is easily installed with the nails that saves more time and labor cost. There are galvanized and aluminum corner bead followed for your choice.

Specification

Material: galvanized steel, aluminum, stainless steel.
Surface treatment: hot-dipped galvanized.
Hole shape: round, diamond, triangle, square or as request.
Thickness: 0.2-3 mm.
Length: 1-3 m.
Width: 0.5-0.625 inches.
Flange size: 20 × 20 mm, 25 × 25 mm, 30 × 30 mm, 35 × 35 mm, 45 × 45 mm, 50 × 50 mm, 55 × 55 mm, 60 × 60 mm (or as your sizes).

Three expanded metal corner beads with two wide flanges and a round nose displayed to us.

ECB-01: Zinc-coated expanded corner bead with a round nose and expanded wings provides neat edge shaping and effective reinforcement for drywall.

An expanded angle bead with raised expanded metal wings attached with the extra strip and a round nose.

ECB-02: The expanded angle bead with the diamond mesh wing for mud embed in easily and firmly, the stiffener ribs for extra reinforcement.

Stainless steel corner bead with rust-resistant and corrosion-resistant performance for coastal and humid areas.

ECB-03: Made of stainless steel, this corner bead offers excellent rust and corrosion resistance and is ideal for coastal and humid environments.

Galvanized steel corner bead with a central groove rib for positioning, shaping, rust resistance, and durability.

ECB-04: Galvanized steel corner bead is rust-resistant and durable, with a central groove rib for positioning and shaping.

Corner bead with U-shaped plastic strip for anti-slip protection, impact resistance, and metal edge protection.

ECB-05: Corner bead with U-shaped plastic strip prevents slipping and impact damage while protecting the metal edge.

Here is a metal corner bead without nose, just two wide perforated flanges of 90 degree angle.

ECB-06: This metal corner bead with 90 degree angle for straight corner lines and perforated wings for effective compound adhesion.

This is a metal angle bead of galvanized surface treatment which has two metal flanges and a small nose.

ECB-07: Metal angle bead is sturdy enough for wall protection, knurled and perforated flanges are nailed for smooth and straight finish.

A plaster angle bead with zinc coating in silver color, the flange attached with many hole for reinforcement.

ECB-08: Plaster angle bead provides corner protection and mud adhesion, the metal material of rust proof and impact resistance.

ECB-09: Corner bead with U-shaped plastic strip prevents slipping and impact damage while protecting the metal edge.

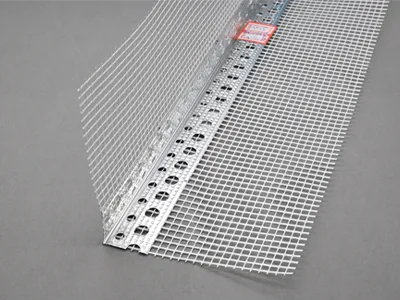

Corner bead with 5–10 cm fiberglass mesh available in white, blue, orange, yellow, and other colors.

ECB-10: Corner bead fiberglass mesh is commonly 5–10 cm wide and available in white, blue, orange, yellow, and other colors.

Galvanized leveling bead with deformation resistance for wall and floor leveling applications.

ECB-11: Galvanized leveling bead resists deformation and is suitable for wall and floor leveling applications.

One plaster corner bead of novel shape appeared with one wing of circular holes and straight bead for corner shape.

ECB-12: Plaster corner bead offers rigid corner reinforcement, it is ideal for humid moisture prone conditions and used in the outside wall.

Perforated edge corner bead with lightweight and high-strength design for suspended ceilings and partition wall applications.

ECB-13: Perforated edge corner bead is lightweight and high in strength, suitable for suspended ceilings, partition walls, and similar applications.

It is a plaster stop bead shown with single expanded wing and a short straight bead.

ECB-14: Plaster stop bead with the zinc coated diamond mesh flange for mud bonding and the straight edge nose for corner shape.

Paper-faced metal corner bead made of crack-resistant joint paper and hot-dip galvanized steel strip for straight and durable external corners.

ECB-15: Paper-faced metal corner bead is made of crack-resistant joint paper and hot-dip galvanized steel strip, firmly bonded with special adhesive.

Paper-faced metal angle bead with rigid steel support and joint paper surface for deformation resistance and better adhesion to putty or plaster.

ECB-16: The steel strip provides rigid support for straight corners, while the joint paper improves bonding with putty and plaster.

Feature

Deeply knurled and perforated flanges provide excellent compound adhesion.
Exposed nose resists impact and forms a screed for finishing.
Specialized zinc coating for steady oxidation resistance and corrosion protection.
Strong metal ingredient offers great reinforcement for drywall corner.
Provide perfect lines, clean finished edge and solid protection for drywall.
Environment friendly metal material for recycling.
Easily and fast installed with nails for labor and time costs saving.
Diverse types and colors for needs.

Application
Metal corner bead is widely used at the plastered wall to provide tidy finish, neat line and resist impact of home, hotel, theater, hospital, factory, office, school, etc.

Two metal corner bead application pictures shown, one is corner bead working now, the other one is the tidy finish appeared.

ECB-17: Metal corner bead offers reinforcement and perfect finish for the wall which is impact resistance, rust proof and high durability.

One picture of plaster corner bead applied at the plaster corner edge forms strong reinforcement and straight lines.

ECB-18: Plaster corner bead applied at the drywall corner edge for protection and tidy finish. Specialized zinc coating for steady oxidation resistance.

Packing
Plastic bag packing and water proof carton packing, or as client request to packing.

One metal corner bead packing picture shown with the water proof plastic bag package.

ECB-19: The plastic bag is water proof and economical.

Many water proof carton package orderly piled up.

ECB-20: The water proof carton is lightweight for easy movement.
